I have replaced the belt vibration damper, belts and tensioner/guide pulleys on my BMW E46 320d. While this is a nearly straightforward operation anyone can perform at home, there are some basic tools and tricks to get the job done properly and safely.
Let me first get this straight! I am no expert in mechanics and you should not take my words as professional advice. I am just curious and eager to share what I learned so far. Do this at your own risk and do not blame me for anything that happens to you or your equipment!
While inspecting my vehicle some weeks ago I noticed some cracks developing on the rubber part of my vibration damper and began linking that to an annoying vibration noise coming from the engine bay, specially at idle. After some investigation it became clear that the damper had to be replaced because I was risking a catastrophic failure not to mention the damage that the vibration might already be causing to the engine.
As I was replacing this part it made sense to replace all pulleys and tensioners since these were still the original components that came with the vehicle. Checking the BMW repair manuals I learned that the proper procedure to undo the single bolt that holds the vibration damper is to use a set of special tools to hold the damper in place while applying force to the bolt. Moreover, the torque to apply in order to install the bolt is 410Nm, which is roughly the same as 40Kg on the end of a one-meter long bar!
There are lots of videos on the net showing how to “cleverly” use the starter to undo this bolt, and also how to block the engine flywheel to prevent the crankshaft from turning when applying torque to tighten/unloose the bolt. However none of these tricks seem to be safe and they might ruin your engine! Using the starter with the damper blocked or blocking the flywheel while applying torque to the bolt will cause the torque applied to the crankshaft to largely exceed the maximum engine torque (280Nm). While the crankshaft is designed to support the maximum engine torque, I see no reason why engineers would have designed it to support much more than that, and you will also risk damaging the starter or the gear tooth on the flywheel.
So don’t follow thisnorthis and do it as per the manual!
As this operation requires a special tool I visited my trusted mechanic to get a quote for labor and parts. While the labor cost seemed reasonable to me, he would not accept for me to bring the parts and would charge me much more for the same parts! To top it off, he would not even consider renting me the special tools I would need to do the operation myself. I totally understand his position as this would completely go against his business model, but this will probably push me further into doing things myself that otherwise I would use his service for.
As a final attempt to source the special tool I made a post on the local BMW user forum asking if someone had the tools for renting – without success.
So I ordered the special tool, a 39″ breaker bar and all the parts needed including the vibration damper bolt and washer and all the bolts and bushings I could need to replace.

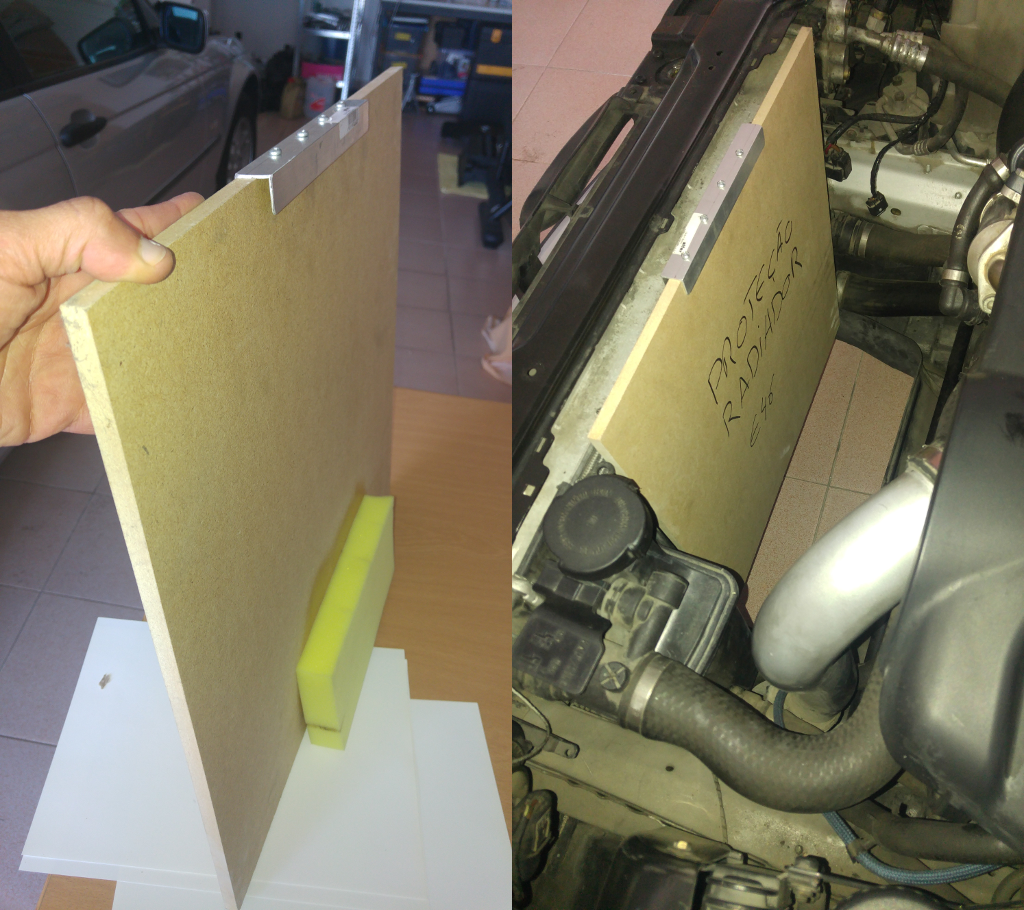

One thing I learned the hard way was how important it is to protect the radiator when you work in close proximity to this fragile component. For that purpose I put together a MDF board with some foam and an aluminum profile to completely protect the radiator from any mishap:
First thing you should do is disconnect the battery to eliminate any chance of accidentally cranking the engine!
To undo the bolt I set the special tool and a square steel bar against the front tire using a small mdf board to distribute the force:
Using the 39″ breaker bar I was able to easily undo the bolt and remove the old the vibration damper.
I was also replacing most of the bolts and bushings but as I tried to remove the two bushings on the the AC compressor supporting bracket, things started to complicate: the old bushings were too tight for easy removal and my attempts to force them out just made everything worse. There was no way I would remove these bushings in place without serious damage to the supporting bracket!
I was considering discharging the AC in order to remove the AC compressor and after that the supporting bracket, but my wise neighbor suggested I should try instead to support the AC compressor and move it slightly aside to be able to remove only the supporting bracket. The following image shows the AC compressor already supported using a plastic strip and hanging from a sturdy exhaust pipe. Note also the air pipe going to the turbo charger already removed and the intake port protected from FOM using a piece of cloth.
After some fiddling with the screws in the tight space I was able to remove the supporting bracket and then the old bushings. While installing the new bushes it became apparent these are meant to be pressed in and it is next to impossible to remove them while the supporting bracket is mounted on the vehicle .
In the next picture the supporting bracket with all the new shinny parts already mounted and ready to be put back in the vehicle:
To tighten the bolt I used the torque specifications on the manual and set the special tool this time against the vehicle framework using a short steel square tube and a mdf block to protect the surface:
After this operation the engine sounds much smoother and gone are most of the vibration and noise that I was already used to… and the car looks better with the new pulleys!
